ConnectCNC Port Settings
DNC / file transfer settings for Burny 3

These settings also work on Burny 1250

Set the following parameters on the machine:

SD50-SERIAL DEFN
Parameter
Value
PROTCL 2 = XON/XOFF
PGM TYPE 1 = WADR STANDARD BURNY 3 WORD ADDRESS TYPE PROGRAM
CHAR TYPE 5 = OP7D-ASCII, ODD PARITY, 7 DATA BITS
BAUD RATE 5 = 2400

To set the CNC up for drip feed:
---drip feed not available on this control---

Set ConnectCNC as follows:

Common Settings
Name Burny III
Baudrate 2400
Data bits 7
Stop bits 1
Parity odd
Flow control Xon/Xoff
Xon Char. 20
Xoff char. 18
Port as available

Send Settings
Header String
Trailer String
End of Line Sequence
Recognize custom EOL
Replace

Check "%" character Checked. This control requires a "%" at the beginning and end of your programs.
Skip empty lines Checked
Skip line numbers user's choice
Skip non printable bytes user's choice
Skip comments check "(...)" if required
Default folder Folder in which you store this machine's programs
Start transfer delay user's choice

Receive Settings
Header String
Trailer String
End of Line Sequence
Recognize custom EOL
Replace (checked) 13,10

Check "%" character Checked. This control requires a "%" at the beginning and end of your programs.
Skip empty lines Checked
Skip line numbers user's choice
Skip non printable bytes user's choice
Skip comments check "(...)" if required
Default folder Folder in which you store this machine's programs
Start transfer delay user's choice
Calculator
for
Machinists


Machinist's Calculator

Easily calculate:
  • Speeds and feeds
  • trigonomerty
  • thread measurement
  • surface finish
and more...

Free 30 day trial

More info..

machinistcalculator.com

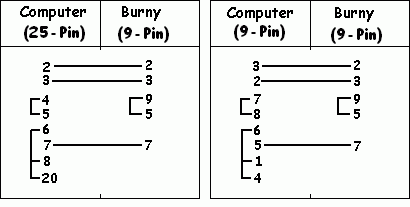

Cable Pin Out for RS232 COMM port

Burny3 Cable

Sometimes file transfer will not run, even if all the settings are correct. Go to this page for solutions.
If you get a message that the port configurations are not saved, see this page for the solution.

Once you have ConnectCNC and your CNC machines communicating, we strongly suggest you take the following precautions:
- Download some programs, the longer the better, from your CNC to the pc. Save them under a temporary filename so you don't overwrite the original files. Examine them for errors such as dropped or changed text.
Do this for the first few programs that you use.

These settings have been collected from users of our software and machine tool distributers. We have listed them to help users of ConnectCNC to communicate between their computers and CNC controls.
Since we have no control over the many variables involved, including such things as cable conditions, modifications to machines, condition of computer hardware, etc., we take no responsibility for any damage caused to programs or machines through the use of this software.

Need a g-code editor? ConnectCNC is also bundled with EditCNC.
