⇐ Back to Settings Index
ConnectCNC Port Settings
DNC / file transfer settings for Hurco Ultimax

Set ConnectCNC as follows:

Common Settings
Name Hurco Ultimax
Baudrate 9600
Data bits 7
Stop bits 1
Parity none
Flow control Xon/Xoff
Xon Char. 17
Xoff char. 19
Port as available

Send Settings
Header String
Trailer String
End of Line Sequence
Recognize custom EOL
Replace

Check "%" character Checked. This control requires a "%" at the beginning and end of your programs.
Skip empty lines Checked
Skip line numbers user's choice
Skip non printable bytes user's choice
Skip comments check "(...)" if required
Default folder Folder in which you store this machine's programs
Start transfer delay user's choice

Receive Settings
Header String
Trailer String
End of Line Sequence
Recognize custom EOL
Replace (checked) 13,10

Check "%" character Checked. This control requires a "%" at the beginning and end of your programs.
Skip empty lines Checked
Skip line numbers user's choice
Skip non printable bytes user's choice
Skip comments check "(...)" if required
Default folder Folder in which you store this machine's programs
Start transfer delay user's choice
Calculator
for
Machinists

Machinist's Calculator

Easily calculate:
  • Speeds and feeds
  • trigonomerty
  • thread measurement
  • surface finish
and more...
Free 30 day trial

More info..

machinistcalculator.com

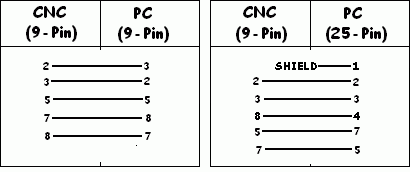

Cable Pin Out for RS232 COMM port

Cable pinout for connecting Hurco Ultimax
Sometimes file transfer will not run, even if all the settings are correct. Go to this page for solutions.
If you get a message that the port configurations are not saved, see this page for the solution.
Once you have ConnectCNC and your CNC machines communicating, we strongly suggest you take the following precautions:
- Download some programs, the longer the better, from your CNC to the pc. Save them under a temporary filename so you don't overwrite the original files. Examine them for errors such as dropped or changed text.
Do this for the first few programs that you use.

These settings have been collected from users of our software and machine tool distributers. We have listed them to help users of ConnectCNC to communicate between their computers and CNC controls.
Since we have no control over the many variables involved, including such things as cable conditions, modifications to machines, condition of computer hardware, etc., we take no responsibility for any damage caused to programs or machines through the use of this software.

Need a g-code editor? ConnectCNC is also bundled with EditCNC.
